Soft Close Ball Bearing Slide With Copper Buffer
Products / Ball Bearing Slides / 45MM Ball Bearing Slides

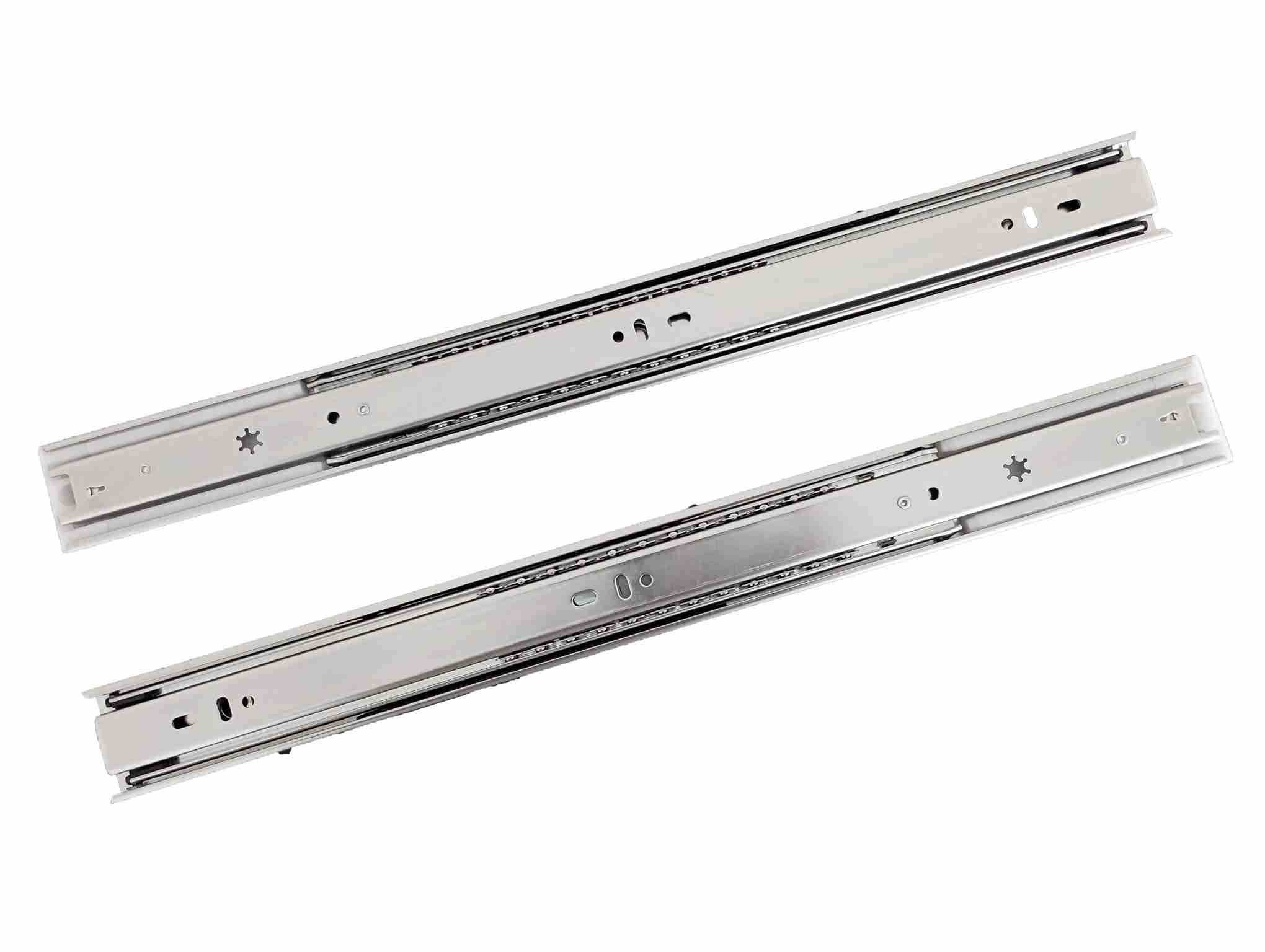

Soft Close Ball Bearing Slide With Copper Buffer

Product Name:


45MM Soft Close Ball Bearing Slide With Copper Buffer

Features:


Copper Buffer With reliable sealing
SOFT-Close Technology
Travel:  Full Extension
Profile Height: 45mm
Profile Thickness: 1.2*1.2*1.4mm
Mounting: 32mm hole pattern with breather tabs
Side Clearance: 12.7mm (.50 ") plus .8mm (.03 ") minus 0
Material: Cold Rolled Steel
Finishes:  Zinc, Black
Lengths: Metric 300mm (12") -600mm ( 24")
Load Capacity: (45kg-100lbs)/18"
Salt spray test: Passed over 48 hours salt spray test
Test Certification: Passed 50,000 cycles by SGS

Applications:


Kitchen & bath cabinets
Residential furniture
Office furniture files & Tool storage

Packaging Units:


Unit of Measure: Set (Pair)
Bulk Carton (B):  10 Sets per carton

Item-No.                                                   Length           Travel
ADL-4501A-J-1-SC-2-ZN / BK-300-B      300mm         300mm
ADL-4501A-J-1-SC-2-ZN / BK-300-B      350mm         350mm
ADL-4501A-J-1-SC-2-ZN / BK-300-B      400mm         400mm
ADL-4501A-J-1-SC-2-ZN / BK-300-B      450mm         450mm
ADL-4501A-J-1-SC-2-ZN / BK-300-B      500mm         500mm
ADL-4501A-J-1-SC-2-ZN / BK-300-B      550mm         550mm
ADL-4501A-J-1-SC-2-ZN / BK-300-B      600mm         600mm
