220lb. 53mm INTERLOCK Full Extension Slide
Products / Ball Bearing Slides / 53MM Ball Bearing Slides

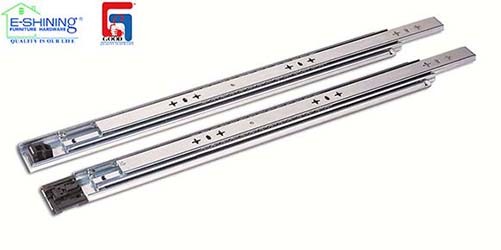

220lb. 53mm INTERLOCK Full Extension Slide

Features:

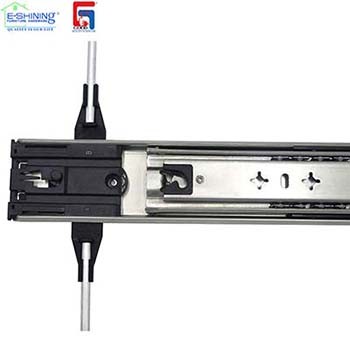

INTERLOCK (Anti-Tilt) System
Travel:  Full Extension
Profile Height: 53mm
Profile Thickness: 2.0*2.0*2.0mm
Mounting: 32mm hole pattern
Side Clearance: 19.0mm (.75 ") plus .8mm (.03 ") minus 0
Material: Cold Rolled Steel
Finishes:  Zinc, Black
Lengths: Metric 300mm (12") -900mm (36")
Load Capacity: (100kg-220lbs)/18"
Salt spray test: Passed over 48 hours salt spray test
Test Certification: Passed 50,000 cycles by SGS

Applications:


Heavy Duty Kitchen cabinets
Heavy Duty Residential furniture
Office furniture Lateral files, Tool storage, and Industrial storage

Packaging Units:


Unit of Measure: Set (Pair)

Item-No.                                                  Length          Travel
ADL-5301-R-1-INT-2-ZN / BK-300-B      300mm         300mm
ADL-5301-R-1-INT-2-ZN / BK-350-B      350mm         350mm
ADL-5301-R-1-INT-2-ZN / BK-400-B      400mm         400mm
ADL-5301-R-1-INT-2-ZN / BK-450-B      450mm         450mm
ADL-5301-R-1-INT-2-ZN / BK-500-B      500mm         500mm
ADL-5301-R-1-INT-2-ZN / BK-550-B      550mm         550mm
ADL-5301-R-1-INT-2-ZN / BK-600-B      600mm         600mm
ADL-5301-R-1-INT-2-ZN / BK-650-B      650mm         650mm
ADL-5301-R-1-INT-2-ZN / BK-700-B      700mm         700mm
ADL-5301-R-1-INT-2-ZN / BK-900-B      900mm         900mm
