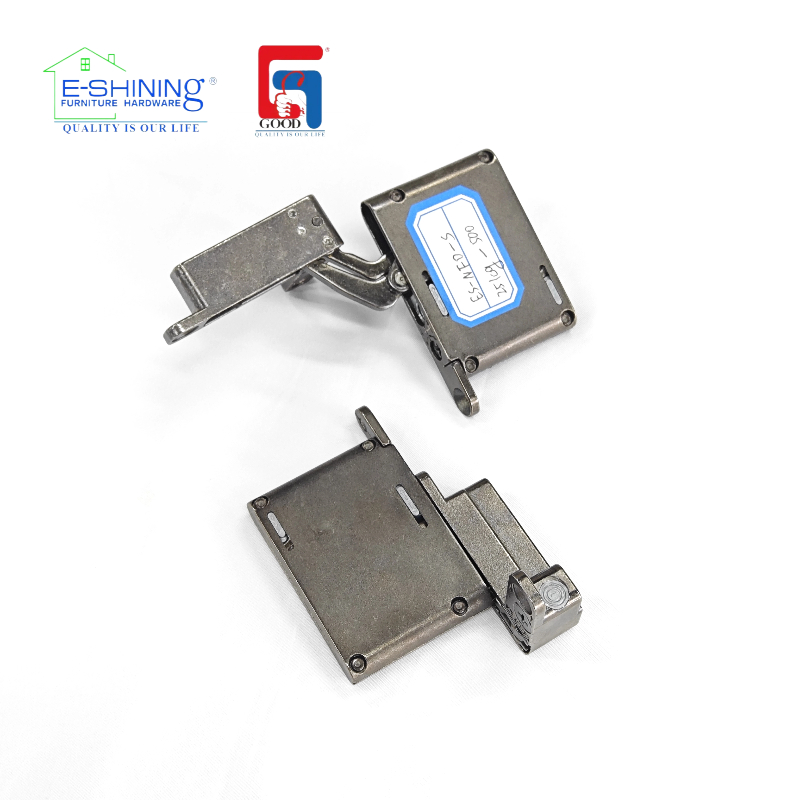

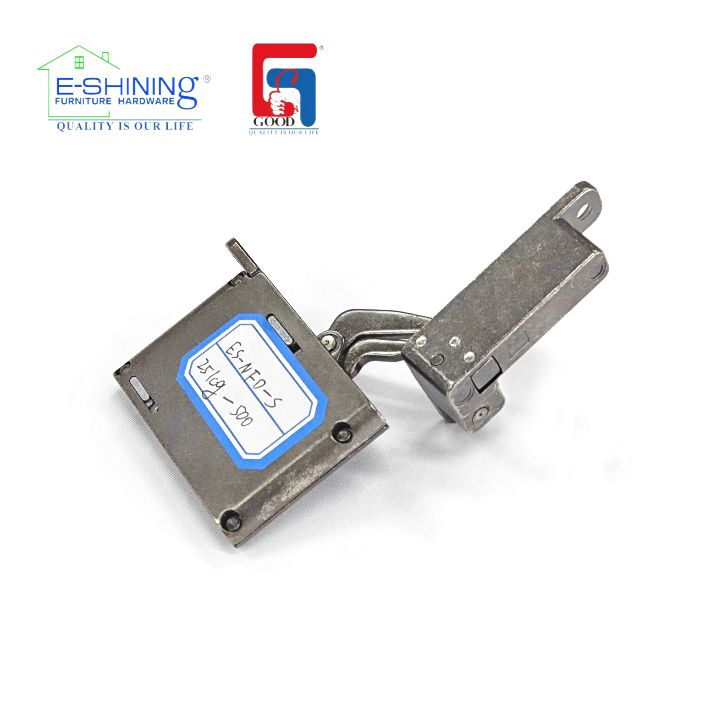

Products / Hinge series / Pivot Hinge ES-NFD-S Product Name:ES-NFD-S Provit Hinge
Features:Model Number: ES-NFD-S Brand Name: AODELI E-SHINING Suitable for 18-32mm thick wooden doors and aluminum frame doors Maximum door weight: 40kg Door(K) dimension: 3-6mm Maximum cover position D=21.5mm(wooden door) Maximum cover position of aluminum frame door D=19.5mm Door seam adjustment:+2.5/-0.5mm Up and down adjustment:+1.0/-1.0mm Cover adiustment:+2.0/-2.0mm Material: zinc alloy + manganese steel (special treatment) Surace Treatment: Black Nickel Plated
Packaging Units:50pcs /carton |
|
